Pipe Freezing Services in Saudi Arabia & Bahrain: Isolating Pipelines Without Shutdown
Integrity Flow Solutions (IFS)
Introduction
Industrial facilities across Saudi Arabia and Bahrain depend on continuous operation of chilled-water systems, cooling-water networks, utility pipelines, and industrial process lines. Shutting down an entire pipeline system for valve replacement, maintenance, or modification can result in operational disruption, additional labour costs, and project delays.
Pipe freezing is a specialized pipeline isolation technique that can enable maintenance work without draining the entire system or shutting down the wider network, provided the application and operating conditions are suitable.
Integrity Flow Solutions (IFS) provides specialized pipe freezing services to support industrial maintenance requirements, with a focus on safe execution, effective planning, and minimizing unnecessary downtime.
What Is Pipe Freezing?
Pipe freezing, also known as cryogenic pipe freezing or pipeline freeze isolation, is a technique used to create a temporary ice plug inside a pipe by cooling its exterior.

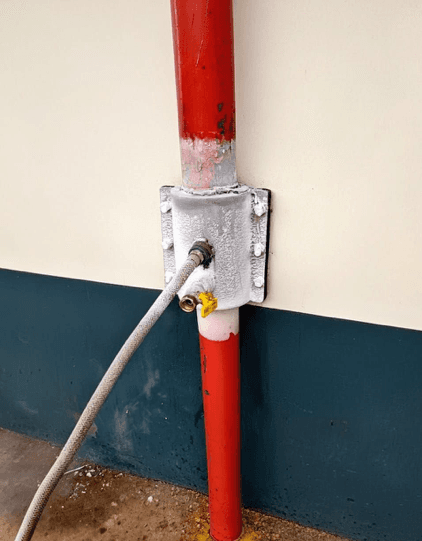

For suitable liquid-filled pipelines, liquid nitrogen (LN₂) is applied through a specialized freezing jacket installed around the selected pipe section. The intense cooling freezes the liquid inside the pipe, forming a temporary plug that can isolate a specific section of the pipeline.
Once the isolation has been established and verified in accordance with the approved procedure, technicians can perform selected maintenance activities while the remaining system continues operating, subject to engineering approval and appropriate safety controls.
This technique can be particularly useful when draining the complete system or shutting down connected equipment would create unnecessary disruption.
How Does Cryogenic Pipe Freezing Work?
A typical liquid nitrogen pipe freezing operation involves several stages, from initial technical assessment to controlled restoration of the pipeline.
1. Site Inspection and Technical Assessment
Before starting the operation, the service provider evaluates the pipeline's diameter, material, wall thickness, operating pressure, temperature, fluid properties, flow conditions, and accessibility.
The assessment determines whether pipe freezing is technically suitable for the proposed maintenance activity and identifies the necessary safety precautions.
2. Preparation of the Freezing Location
The selected pipe section is inspected and prepared as required. A suitable freezing jacket is installed around the designated location, and the necessary equipment, temperature monitoring instruments, and safety arrangements are established.
3. Liquid Nitrogen Application
Liquid nitrogen is introduced into the freezing jacket according to the approved operating procedure. The resulting low temperature gradually freezes the liquid inside the pipe, creating a temporary ice plug.
The freezing process must be controlled carefully to ensure that the pipeline and surrounding equipment remain within acceptable operating conditions.
4. Plug Formation and Monitoring
The freezing process is monitored using suitable temperature probes and other specified controls. The time required to form the plug depends on several factors, including pipe diameter, material, wall thickness, fluid type, initial temperature, flow conditions, and operating pressure.
Where zero flow is required, that condition must be established and verified before freezing begins.
Temperature readings alone do not confirm that a pressure-tight isolation has been achieved. Verification must follow the approved procedure before maintenance work is authorized.
5. Maintenance or Repair Work
Once the temporary isolation has been established and verified, the authorized maintenance team can perform the planned work in accordance with the approved method statement.
Depending on the application, this may include selected valve replacements, pipeline modifications, or repairs on compatible liquid-filled systems.
6. Controlled Thawing and System Restoration
After the maintenance work is completed, the system is checked to confirm that it is ready for restoration. The freezing equipment is removed, and the ice plug is allowed to thaw under controlled conditions.
The pipeline is then inspected and returned to service in accordance with the approved restoration procedure.
Applications of Pipe Freezing Services in Saudi Arabia and Bahrain
Pipe freezing can be considered for a range of industrial, commercial, and facility maintenance applications where temporary isolation is technically feasible.
Common applications include:
- Chilled-water pipeline maintenance: Supporting repairs and modifications in commercial buildings, hotels, hospitals, and industrial facilities.
- Cooling-water system maintenance: Facilitating selected repairs and modifications while minimizing disruption to connected systems.
- Valve replacement: Enabling selected valve replacement activities where suitable isolation can be established.
- Utility pipeline isolation: Providing temporary isolation for compatible water-filled utility lines.
- Pipeline modifications: Supporting changes to existing pipeline arrangements where draining the complete system is undesirable.
- Industrial maintenance projects: Helping maintenance teams plan localized interventions in facilities where service continuity is important.
Pipe freezing is not suitable for every pipeline, fluid, or operating condition. Each application requires an engineering assessment of the pipeline contents, freezing characteristics, pressure, pipe integrity, and consequences of potential isolation failure.
Key Benefits of Pipe Freezing Services
Minimize Unnecessary Shutdowns
For suitable applications, pipe freezing can allow localized maintenance without shutting down the entire connected pipeline network. This can help reduce disruption to facility operations.
Reduce Drainage Requirements
Traditional maintenance procedures may require draining large sections of a pipeline system. Pipe freezing can reduce or eliminate the need for full-system drainage when a localized temporary isolation is sufficient.
Support Planned Maintenance
The technique can help maintenance teams coordinate selected repairs and modifications while limiting disruption to other operating areas.
Avoid Additional Permanent Isolation Equipment
In suitable situations, a temporary freeze plug can provide localized isolation without requiring the installation of a permanent valve solely for the maintenance activity.
Support Industrial and Facility Maintenance
Pipe freezing may be useful for selected chilled-water, cooling-water, and other compatible liquid-filled pipeline systems across industrial plants, commercial properties, and infrastructure facilities.
The actual benefits, project duration, and potential cost savings depend on the specific application, site conditions, and approved execution plan.
Safety Considerations for Pipe Freezing
Cryogenic pipe freezing requires specialized equipment, trained personnel, and a documented execution plan. Safety must remain a priority throughout the freezing, maintenance, and thawing stages.
Important considerations include:
- Pipeline assessment: Confirm pipe material, wall thickness, operating pressure, temperature, and overall condition.
- Flow conditions: Establish whether zero flow or another specified operating condition is necessary to form and maintain the ice plug.
- Isolation verification: Do not rely on temperature readings alone as proof of pressure-tight isolation. Follow the approved verification procedure.
- Liquid nitrogen hazards: Protect personnel against cryogenic burns, extreme cold, oxygen displacement, and pressure-related hazards.
- Pressure management: Assess trapped liquid, thermal expansion, and potential pressure buildup during freezing and thawing.
- Work authorization: Complete the required risk assessment, method statement, permit-to-work process, and coordination with the facility operations team.
- Contingency planning: Establish appropriate monitoring arrangements, emergency procedures, and clear criteria for stopping the operation.
Pipe freezing must not be treated as an automatic substitute for positive isolation. Where project specifications, facility procedures, or applicable safety requirements mandate a different isolation method, those requirements must be followed.
Why Choose Integrity Flow Solutions (IFS)?
Desert Luxe Integrity Flow Solutions (IFS) is an industrial service provider supporting pipeline maintenance, intervention, and mechanical engineering requirements.
Our service portfolio includes:
- Cryogenic pipe freezing services
- Hot tapping services
- Line stopping and temporary pipeline isolation
- Industrial and in-service welding
- Thermowell installation
- Tank maintenance and fabrication
- Mechanical shutdown services
We aim to deliver practical engineering solutions, dependable field support, and safety-focused execution tailored to industrial clients, MEP contractors, maintenance companies, and facility management teams.
By assessing each application individually, IFS works to identify suitable intervention methods that align with the technical requirements and operational priorities of the project.
Pipe Freezing Services Across Saudi Arabia and Bahrain
Integrity Flow Solutions welcomes enquiries from industrial facilities, MEP contractors, maintenance companies, and project teams seeking pipeline isolation solutions in Saudi Arabia and Bahrain.
Whether your project involves a chilled-water line, a cooling-water network, or another compatible liquid-filled pipeline, our team can review the available technical information and help determine whether pipe freezing is an appropriate option.
To support an initial assessment, please provide the following information:
- Pipe diameter and material
- Fluid type
- Operating pressure and temperature
- Site location
- Nature of the planned maintenance or repair
- Preferred maintenance schedule
This information helps establish the initial feasibility of the application and identify any additional technical details required before a site assessment.
Contact Integrity Flow Solutions (IFS)
Looking for professional pipe freezing services in Saudi Arabia or Bahrain? Contact Integrity Flow Solutions to discuss your pipeline isolation requirements and explore suitable maintenance solutions.
Website: www.integrityflowsolutions.com
Email: sales@integrityflowsolutions.com
Phone / WhatsApp: +966 54 428 1689
Service Areas: Saudi Arabia and Bahrain
Frequently Asked Questions About Pipe Freezing
1. What is pipe freezing used for?
Pipe freezing is used to create a temporary ice plug inside a suitable liquid-filled pipeline, allowing selected maintenance activities to be performed without draining the entire connected system.
2. Can pipe freezing be performed without shutting down the system?
In suitable applications, pipe freezing can enable localized maintenance while other parts of the system remain operational. The required flow conditions and isolation arrangements must be evaluated for each project.
3. Is liquid nitrogen used for pipe freezing?
Yes. Cryogenic pipe freezing commonly uses liquid nitrogen to cool a selected pipe section and freeze the liquid inside it, forming a temporary isolation plug.
4. Which industries can benefit from pipe freezing services?
Potential applications include industrial plants, commercial buildings, hospitals, hotels, infrastructure facilities, and other sites with compatible chilled-water, cooling-water, or utility pipelines.
5. Is pipe freezing suitable for every type of pipeline?
No. Suitability depends on factors such as pipe material, diameter, wall thickness, fluid properties, pressure, temperature, flow conditions, and the consequences of isolation failure. A technical assessment is essential before proceeding.
6. Does pipe freezing eliminate the need for safety procedures?
No. Pipe freezing requires risk assessment, approved work procedures, appropriate isolation verification, cryogenic safety controls, pressure management, and contingency planning.
7. How can I request pipe freezing services in Saudi Arabia or Bahrain?
Contact Integrity Flow Solutions at sales@integrityflowsolutions.com or call +966 54 428 1689. Provide your site location, pipeline specifications, operating conditions, and planned maintenance activity to support an initial technical review.
